Novelties at HOLZ-HER!

Exciting topics in the new HOLZ-HER Times

The latest issue of HOLZ-HER Times is full of exciting content for your workshop - just read it and find out about our innovations and highlights:

LINEA 6015: Compact, fast, and precise.
EVOLUTION Door Package: Opens up new possibilities for you
The New POWER-PIN: Driving in dowels couldn't be simpler
The EPICON 5-Axis CNC: Machining options for extreme flexibility

DOWNLOAD

HOLZ-HER CNC machining centers

Powerful solutions for craftsmen and industry in woodworking and plastics processing

Top equipment for highest productivity and superior quality

Request a quote

4-axis or 5-axes CNC machining center

5-axes CNC machining center EPICON series

The high power universal geniuses

Machining dimensions max. in X up to 7280mm, in Y 2100mm
Standard machining height 300mm
High-end 5-axes technology for every application, up to 18KW performance

Campus software package with open interfaces for CAD/CAM software
SafeDetect latest safety technology with radar sensors
Suction positioning via laser, LED or fully automatic

4-axes CNC machine PRO-MASTER series

Professional CNC Technology for Universal Machining

Machining dimensions max. in X up to 5225mm, in Y 1287mm
Machining height 180mm
Powerful 3-4 axes spindle with interpolating C axis
2nd milling spindle for horizontal machining
Campus software package with open interfaces for CAD/CAM software
Safety devices step mat, bumper or light barrier

CNC machining center EVOLUTION: Complete vertical machining in compact format

EVOLUTION 7405 PinJet

Complete CNC machining with fully automatic doweling

Part size max. in X 200-3500mm, in Y 70-1200mm, in Z 8-70mm
5-sided machining of the workpieces, milling and drilling
Automatic driving of the dowels
Suction cup positioning fully automatic through the software
Campus software package with open interfaces for CAD/CAM software
Up to 6 tools in the tool changer

EVOLUTION 7405

Complete CNC machining with Lamello P-System capability

Part size max. in X 200-3500mm, in Y 70-1200mm, in Z 8-70mm
5-sided machining of the workpieces
Lamello P system fully integrated
Doors package for machining interior doors
Special macro package for easy programming of doors and Lamello P system
Free forms are possible by using vacuum clamps

EVOLUTION 7402

High-performance drilling and formatting center

Component size max. in X 200-2500mm, in Y 70-920mm, in Z 8-70mm
Drilling and milling unit
4 compartment tool magazine with automatic change
Complete machining in smallest space
Pinjet for automatic dowel insertion
Lamello P system processing possible

Nesting CNC machining centers: time saving in furniture production

5-axis nesting CNC milling machine DYNESTIC 7535

Flexible CNC machining with efficient formatting and drilling

Machining sizes in X up to 6250mm, in Y 1500mm and 2200mm, in Z up to 300mm
Powerful 5-axis head for complex applications in the nest
Up to 32 controlled vacuum fields for optimal part clamping
Campus software package with BetterNest software for efficient optimization
- Open interface to CAD/CAM software
Automatic cleaning and pushing off of finished workpieces
Working with saw blades up to 350mm
Innovative clamping options on the nesting table for single parts and solid wood

3-axis nesting CNC machine DYNESTIC

The intelligent nesting machining of the future

Machining sizes in X 3100-6250mm, in Y 1500mm and 2200mm, in Z up to 100mm
Series Dynestic 7505, 7507 and Dynestic 7532
Free C-axis for use of aggregates selectable
Up to 35 spindles in drill head for fast drilling cycles
High-flow nesting table with controlled vacuum zones
Lamello P system insertion in nest
Two Z-axes for fast drilling and milling cycles
Manual labeling with TouchLabel or fully automatic with DirectLabel
Powerful 16KW liquid cooled milling spindles as option

Automatic nesting machines

High-end gantry CNC machining center for nesting and modern furniture production

All basic nesting machines can be upgraded to one system
High-speed nesting machines for fast and flexible throughput
Optimized extraction for dust-free processing
Automatic labeling via DirectLabel or Powerlabel
Feeding via lift table or surface storage system
Nesting connectors as macros included in Campus package
Nextec 4.0 / Automation Pro host computer for optimum workflow from planning to production

HOLZ-HER edge banding machines

Zero joints - technology in standard

HOLZ-HER always offers the perfect solution for any edgebanding machine for a superior edgeband look with zero joint technology.

Request a quote

Compact edge banding machine

Compact, zero joint, PUR processing as standard as well as clever and simple operation!

Artea 1020 - 1030 and Streamer C-Series
Machine lengths from 3200mm
PUR processing as standard due to GluJet technology
Control via Egde-Control BC 15
Vi.se. (Visual Setting Mode) for setting the aggregates

Controlled edge banding machine

More power under the hood!

Auriga 1308XL and Sprint 1327 Series
Feeds from 10 - to 18 m/min
EVA and PUR processing as standard
NC servo axes for precise automatic setup
Graphical setting of profiles via Intelligent Tool Correction
Multifunctional technology

High-end edge banding machine

Flawless zero joints with laser edges and Glu Jet at industrial level

Sprint 1329, Accura and Lumina Series
Variable feeds up to 25 m/min
Edge thickness 0.4 - 20mm
Continuous multifunctional technology
2 kg PUR cartridge system for high cost efficiency
Automatic cleaning of PUR adhesive
L-Tronic unit for processing laser edges

HOLZ-HER sawing technology

Precise sawing technology with intelligent handling solutions

- Horizontal panel saws - High-performance panel-sizing technology. - Vertical panel saws - Sophisticated cutting precision in the smallest space.

Request a quote

Horizontal sawing technology - high-performance panel-sizing technology

Pressure beam saw LINEA series

From the craft for the craft.

Cutting dimensions up to 3800mm x 3800mm
saw blade projection 68mm
main saw with 7,5KW as standard and 11KW as option
Scorer with separate 2,2KW motor
New storage possibility via side access
Optimize on the machine or in the office

Pressure beam saw ZENTREX series

The power package in HOLZ-HER pressure beam saws

Cutting dimensions up to 5800mm x 6500mm
Saw blade projection up to 130mm
Saw aggret up to 25KW power
Twin Press - double side pressure
Innovative exhaust management
Solutions for lift table or surface storage feeding
Plastic package and special applications as option

Vertical sawing technology - Sophisticated cutting precision in the smallest of spaces

Automatic plate bearing

Area storage for chaotic storage of panels and automatic feeding of machines

With our plate storage systems, you can increase the capacity and profitability of your operation sustainably and with a very fast ROI. Let us offer you your customized solution

Request a quote

Automatic plate storage systems

Area storage with nesting machine

The local solution for your production control with HOLZ-HER nesting CNC machines

Highly efficient production with low manpower requirements
Feeding of a 3 or 5 axis nesting for all applications
Machine control via Nextec 4.0/ Automation Pro host computer
Open interface to many CAD/CAM providers

Digitization 4.0

Weinig App - Via Cockpit

The HOLZ-HER machine monitoring

Monitoring of your machinery
Job overview and productivity on the smartphone or tablet
Avoid downtime by monitoring spindles and machine condition
Plan maintenance in advance by displaying maintenance schedules
Recognize production trends and react at an early stage

REFERENCES

These are the experiences of our customers in dealing with our HOLZ-HER machines:

Tischlerei Albers: Enthusiasm and pleasure in working with wood
With precision and passion for wood as a material, the team at Tischlerei Albers fulfills the wishes of its customers.
To achieve this efficiently, the Albers joinery relies on HOLZ-HER machines and is very satisfied with the latest investment. In 2021, the new acquisition of the CNC EVOLUTION 7405 was realized, a full CNC machining center with which every user can find his system solution, entirely according to individual needs.
With the EVOLUTION 7405, the Albers joinery can carry out its craft in a contemporary and efficient manner. In addition, HOLZ-HER machines enable precise work at the highest level - and that in relatively little space.
Above all, the Pic2Plate software is a major focus in the joinery. This patented software makes it easy to process image files and via a vector milling program. The results are impressive light-reflex engravings with depth effect.
Together with HOLZ-HER, Tischlerei Albers ensures the highest processing quality and satisfied customers.
AlbersSchreinerTischlerei Albers, 27305 Bruchhausen-Vilsen

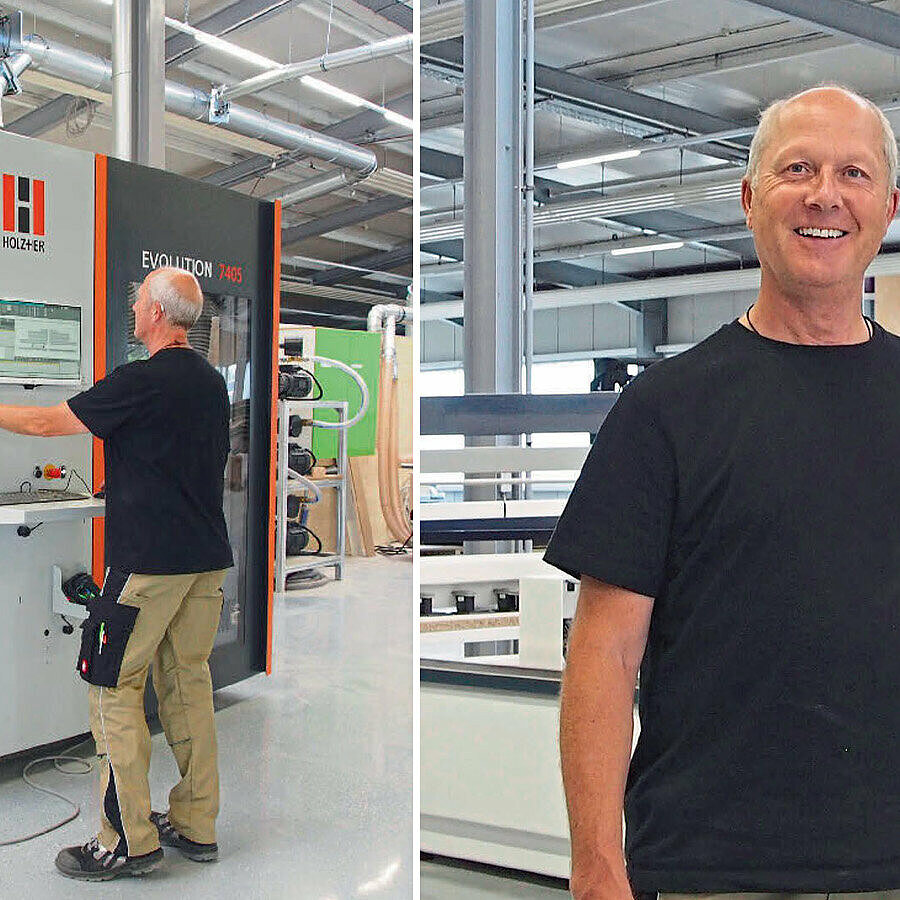

The new start of a supplier and manufacturing specialist
After the building of Gesa GmbH burned down completely, the supplier and manufacturing specialist made an impressive new start within a very short time. State-of-the-art machine technology meets sensible automation and well thought-out processes in the workshop of the five-man operation. [...]
The new machinery is impressive - and anything but usual for a joinery with just five employees (including the boss):
- 5-axis CNC including edge banding unit
- vertical CNC machining center Holz-Her Evolution 7405
- horizontal panel-sizing saw Holz-Her Tectra 6120 Power
- Accura 1558 4.0 Performance edge banding machine with Return-Master 5920 part return (Holz-Her)
Thanks to continuous investments in modern CNC machining centers and other high-performance production and machine technology, Gesa had long since developed into a sought-after manufacturer of complex construction and series parts of the highest precision and quality, also for leading customers in the furniture industry.
GesaInhaberGesa GmbH, Holzburg
